Description
Stainless Steel Friction Hinges
Our Stainless Steel Friction Hinges are made from marine grade 316 stainless and Beautifully hand buffed to a mirror polish.
Revolutionary patented technology designed into hinge barrel construction creates constant torque. Designed to hold door open without any torque adjustment. Ideal for overhead doors, baitwell lids, glove box, interior doors, anchor lockers and electronics panels
Our Stainless Steel Friction Hinges have passed 10,000 cycle test within 10% decrease in torque; 20,000 cycle test within 20% decrease. 500 hour salt-spray tested. #8 or M4 Screw
Available in 3 sizes

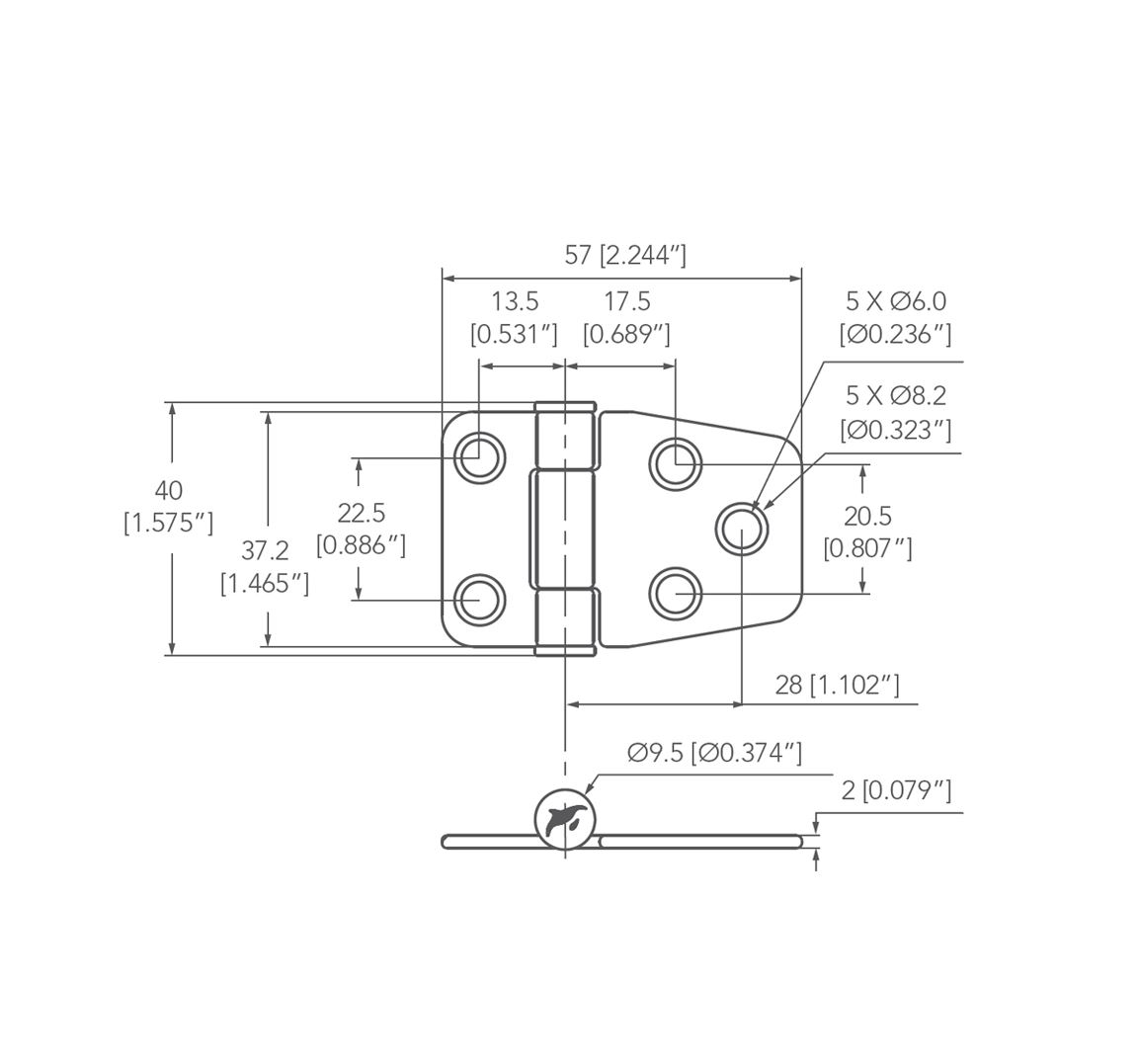

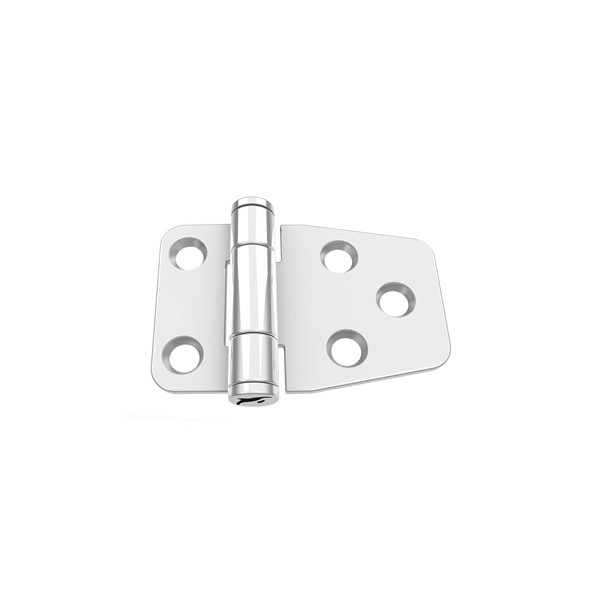

- CQ-0319227 – 40mm x 57mm (Asymmetric Leaf)

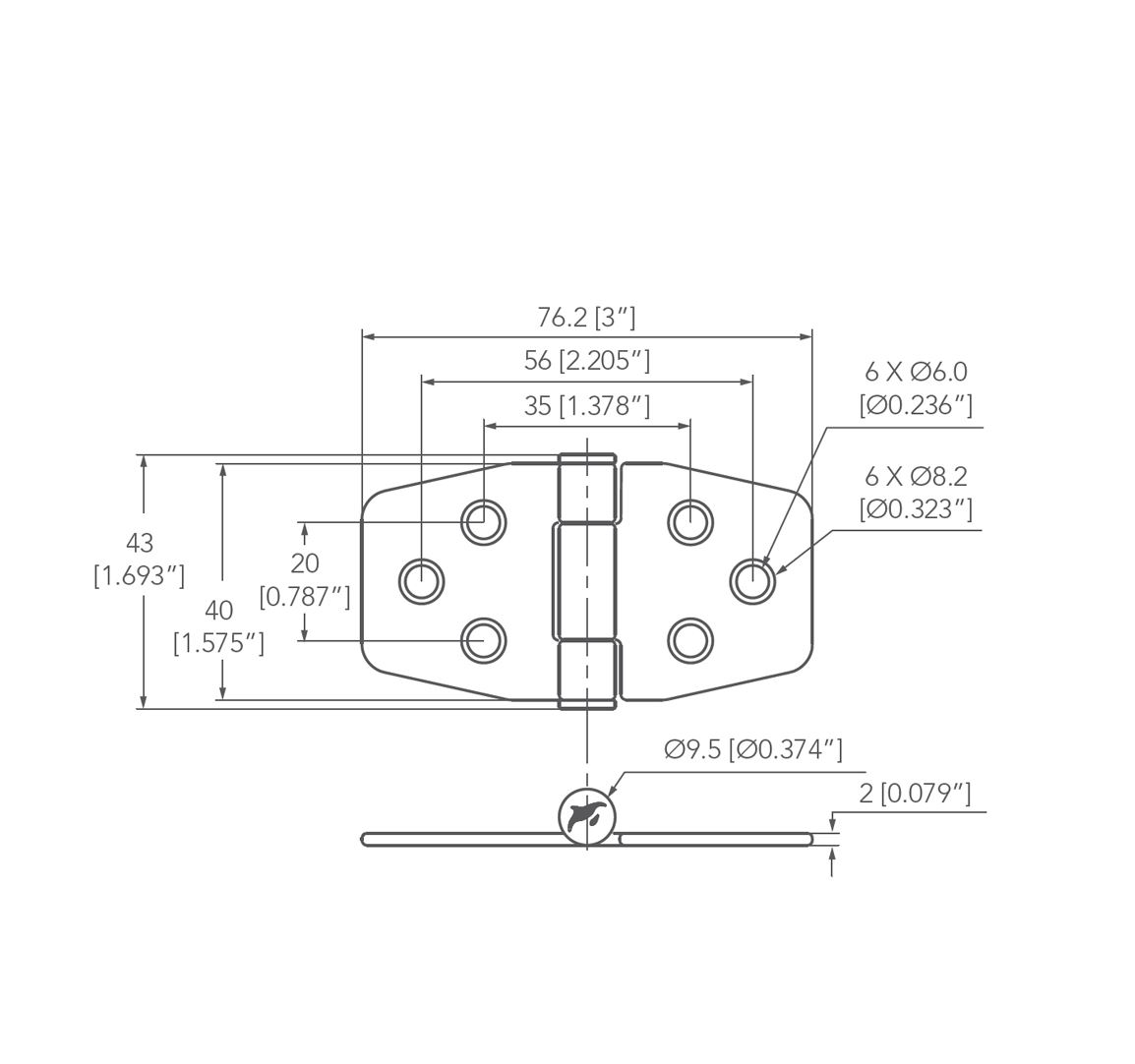

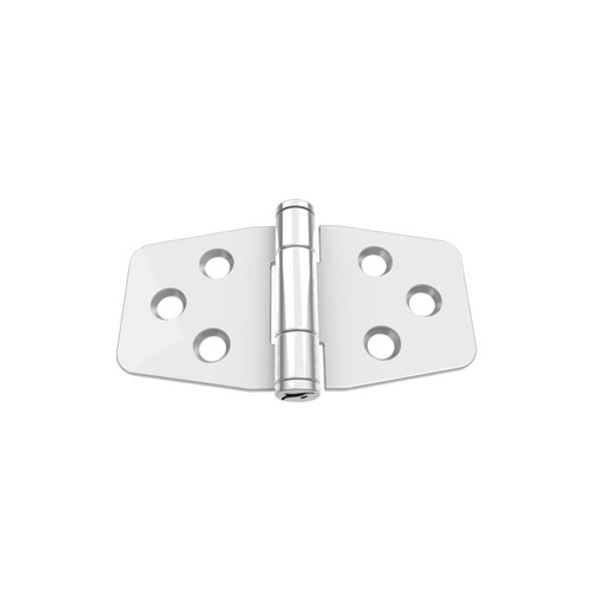

- CQ-0319223 – 40mm x 76mm (Matched Leaf)

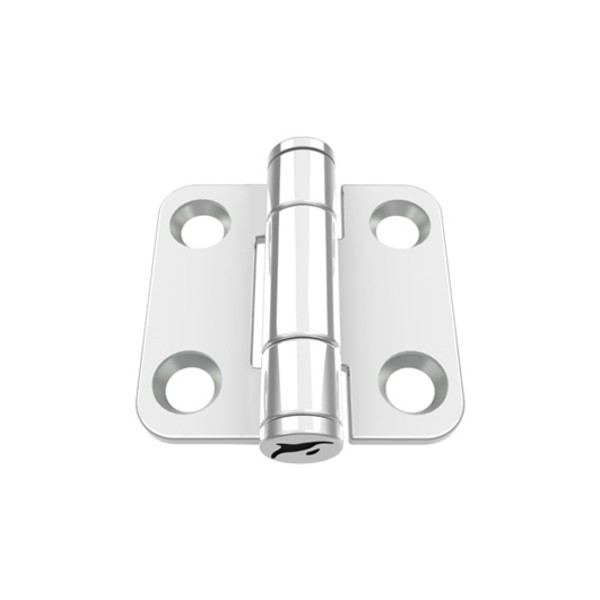

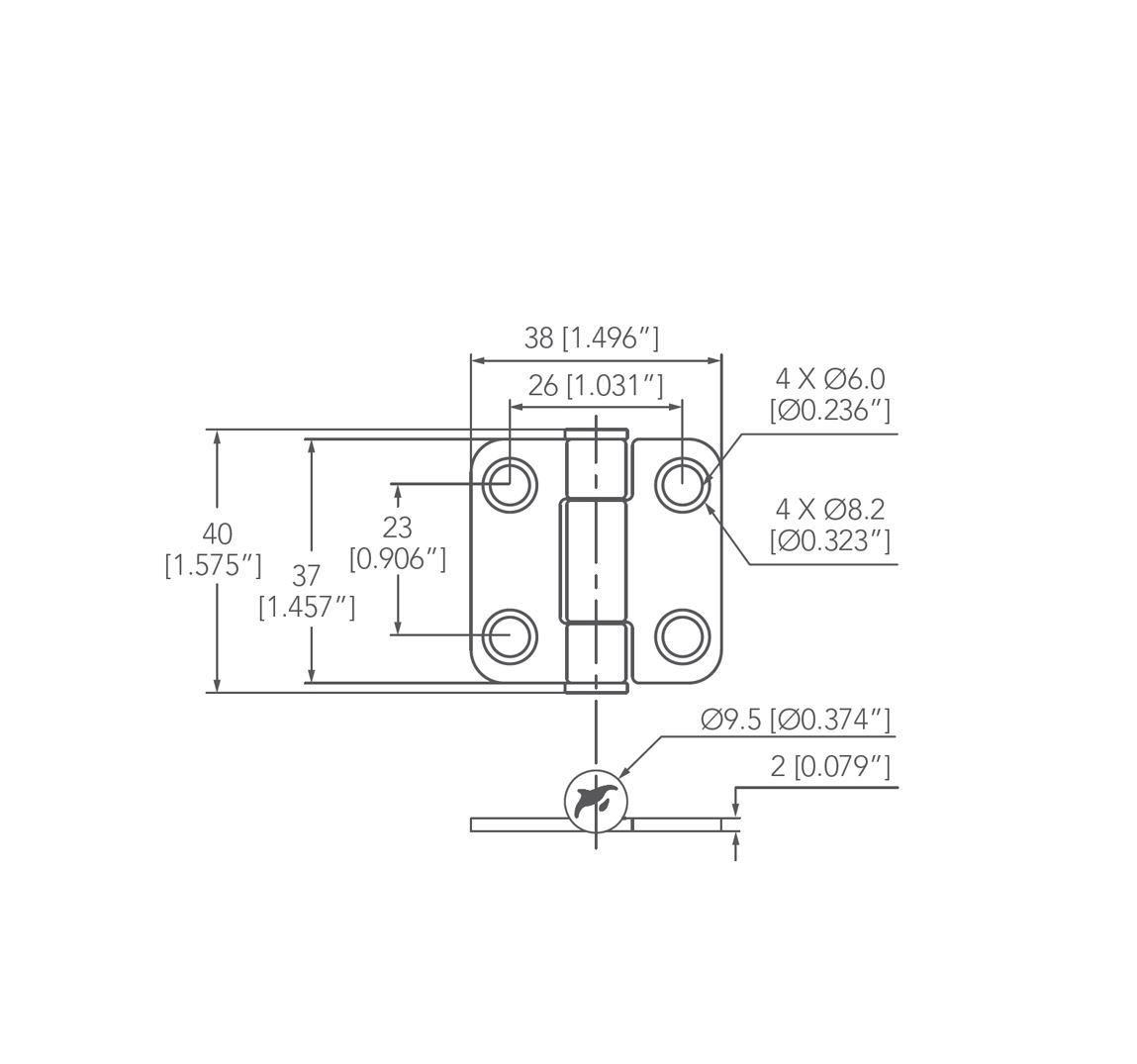

- CQ-0319221 – 37mm x 37mm (Square)
Marine Grade 316 Stainless Steel
Our range of hardware and fittings have until now, only been available to the world’s most exclusive Yacht Builders. The majority being made from Marine Grade 316 Stainless Steel. Cast by a team of highly experienced specialists, then hand polished to give a depth of shine that differentiates the exceptional from the average.
