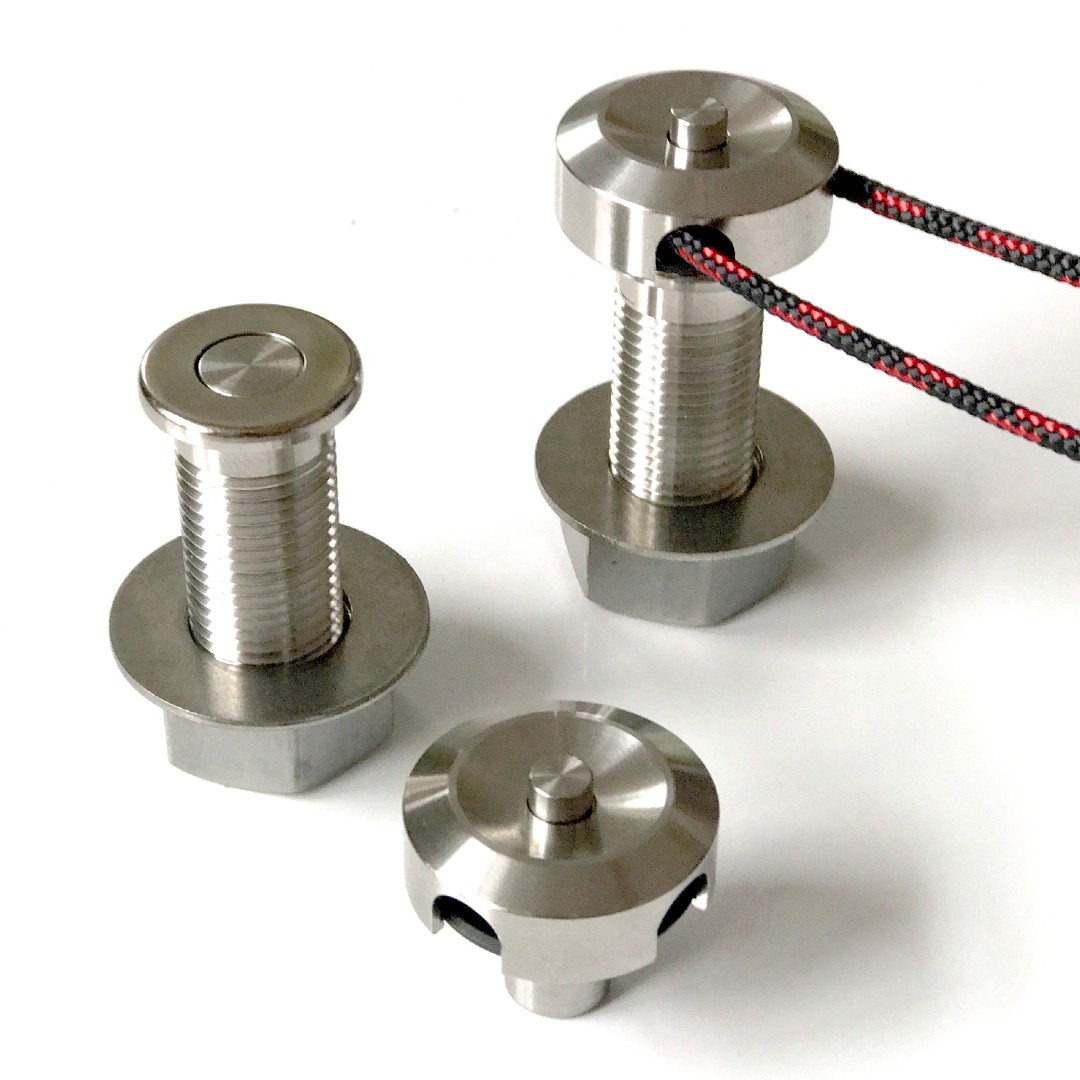

360 Degree Swivel Lock

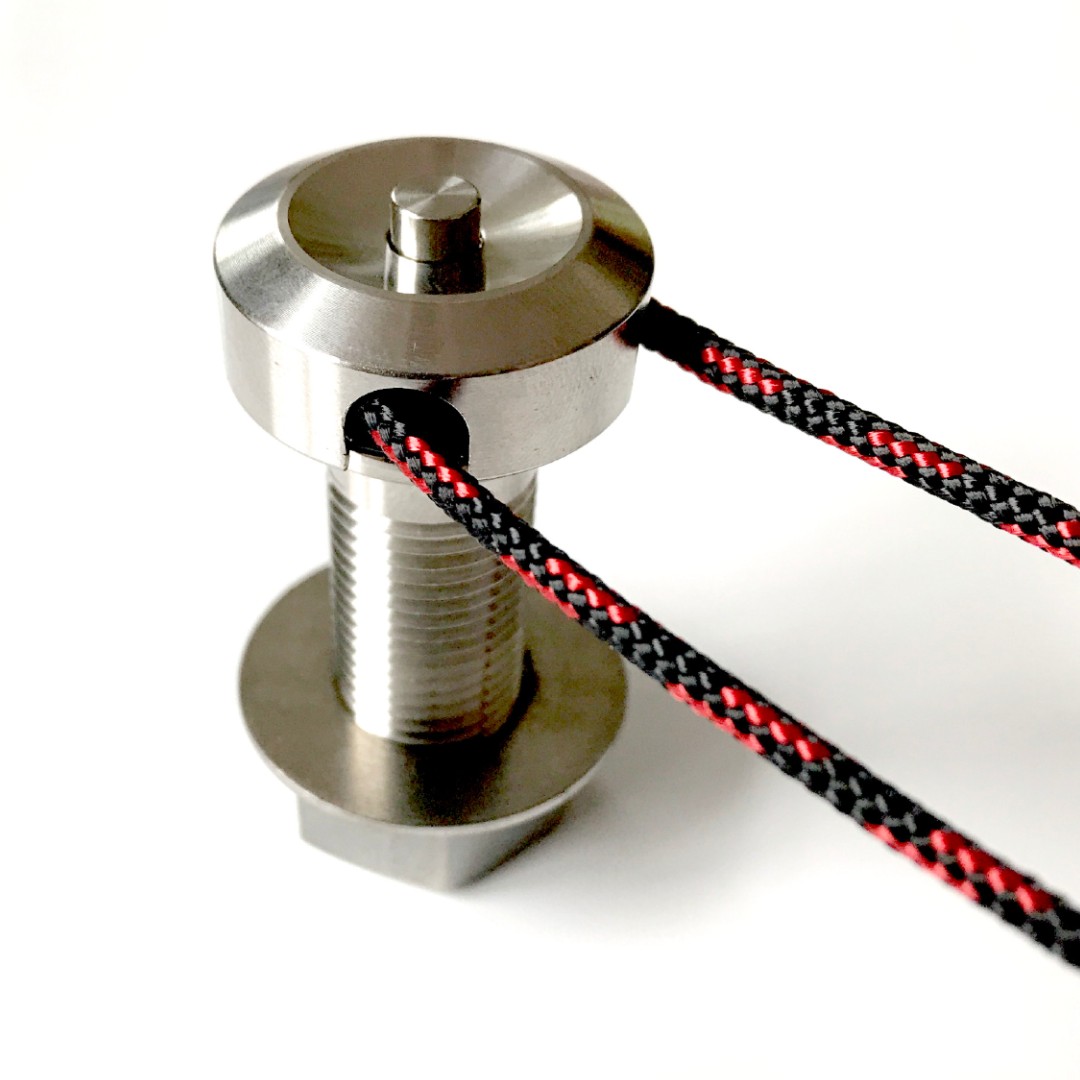

Our 360 Degree Swivel Lock unit has many functions. Ideal for fitting Fenders, Canopies, Lee Cloth, Boat Covers etc. Manufactured from marine grade 316 stainless steel, allowing the 360 Degree Swivel Lock to withstand the harshest of environments.
The low profile (waterproof) base unit offers a clean flush look and extremely smooth functionality. Simply press the button in the cap to fit or remove from the base unit.
This unit has a SWL of 100kg Vertical load and 400kg Horizontal Load.
Tested to failure point of 200kg Vertical and 800kg Horizontal offering a 2X margin of safety when used in the correct plain.

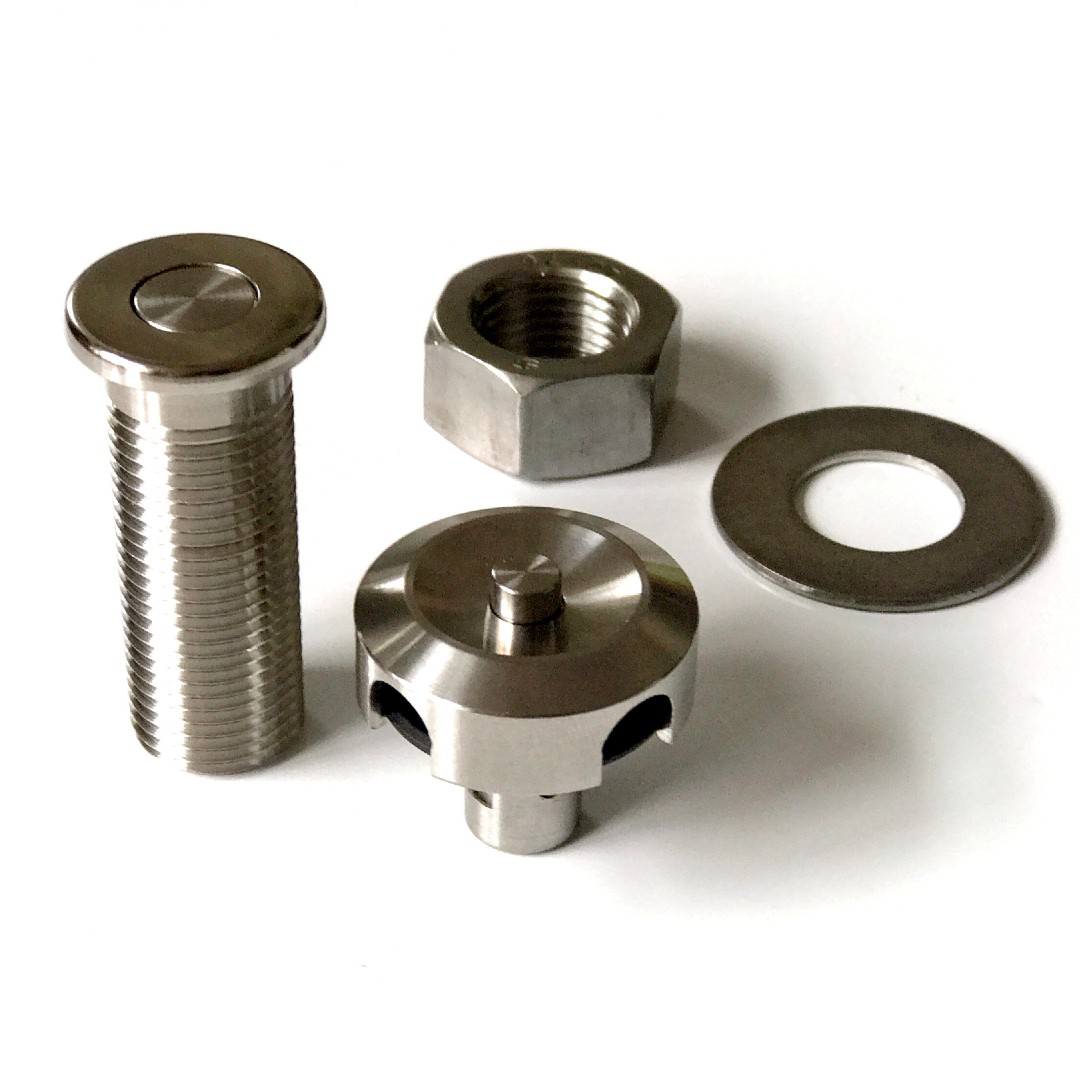

Dimensions
Length Assembled – 59mm
Length of Base Unit only – 41mm
Cap Diameter – 29mm
Cap Height above deck – 12mm
Base Unit Head Diameter – 22mm
Base Unit Body Diameter – M16
